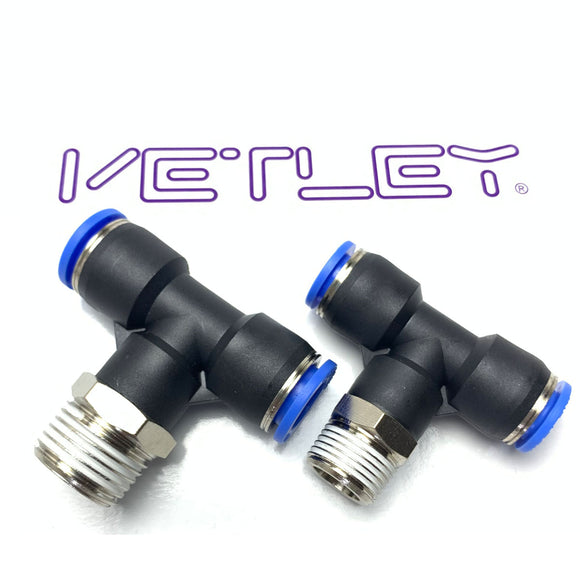

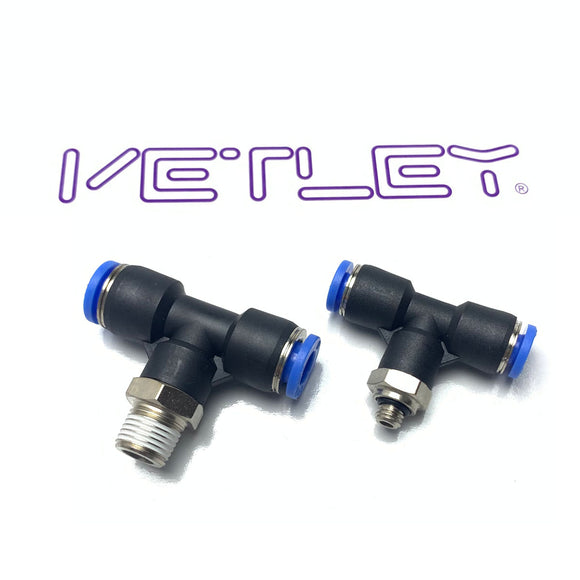

PT Male Tee Metric Tube Size and U.S National Taper Pipe Thread
One Touch Fittings Pneumatic Fittings
More Specification
| Metric Out Diameter to PT Thread | |||
| PT Male Tee | |||
| PT 04-UNF10-32 | PT 06-N01 | PT 08-N03 | PT 12-N01 |
| PT 04-N01 | PT 06-N02 | PT 08-N04 | PT 12-N02 |
| PT 04-N02 | PT 06-N03 | PT 10-N01 | PT 12-N03 |
| PT 04-N03 | PT 06-N04 | PT 10-N02 | PT 12-N04 |
| PT 06-UNF10-32 | PT 08-N01 | PT 10-N03 | PT 12-N06 |
| PT 06-N0.5 | PT 08-N02 | PT 10-N04 | |
Dimensional
| Model | ∅D | ∅P | T | L | E | A | B | H(Hex) |
| PT03-UNF | 03 | 10.5 | UNF 10/32 | 21.4 | 18.5 | 3.6 | 14.8 | 10 |
| PT03-N01 | 03 | 10.5 | NPT 1/8 | 25 | 18.5 | 8 | 14.8 | 10 |
| PT03-N02 | 03 | 10.5 | NPT 1/4 | 28 | 18.5 | 10 | 14.8 | 14 |
| PT04-UNF | 04 | 11.5 | UNF 10/32 | 21.4 | 19.1 | 3.6 | 15.8 | 10 |
| PT04-N01 | 04 | 11.5 | NPT 1/8 | 25 | 19.1 | 8 | 15.8 | 10 |
| PT04-N02 | 04 | 11.5 | NPT 1/4 | 28 | 19.1 | 10 | 15.8 | 14 |
| PT04-N03 | 04 | 11.5 | NPT 3/8 | 29 | 19.1 | 11 | 15.8 | 17 |
| PT06-UNF | 06 | 13 | UNF 10/32 | 25.9 | 20.5 | 3.6 | 16.8 | 12 |
| PT06-N01 | 06 | 13 | NPT 1/8 | 27.8 | 20.5 | 8 | 16.8 | 12 |
| PT06-N02 | 06 | 13 | NPT 1/4 | 30.5 | 20.5 | 10 | 16.8 | 14 |
| PT06-N03 | 06 | 13 | NPT 3/8 | 31.5 | 20.5 | 11 | 16.8 | 17 |
| PT08-N01 | 08 | 15 | NPT 1/8 | 29.5 | 22.7 | 8 | 18.4 | 14 |
| PT08-N02 | 08 | 15 | NPT 1/4 | 31.5 | 22.7 | 10 | 18.4 | 14 |
| PT08-N03 | 08 | 15 | NPT 3/8 | 32.5 | 22.7 | 11 | 18.4 | 17 |
| PT08-N04 | 08 | 15 | NPT 1/2 | 35.5 | 22.7 | 14 | 18.4 | 21 |
| PT10-N01 | 10 | 17.5 | NPT 1/8 | 30 | 23.8 | 8 | 20.1 | 17 |
| PT10-N02 | 10 | 17.5 | NPT 1/4 | 32 | 23.8 | 10 | 20.1 | 17 |
| PT10-N03 | 10 | 17.5 | NPT 3/8 | 33 | 23.8 | 11 | 20.1 | 17 |
| PT10-N04 | 10 | 17.5 | NPT 1/2 | 36 | 23.8 | 14 | 20.1 | 21 |
| PT12-N01 | 12 | 21 | NPT 1/8 | 35.5 | 28.3 | 8 | 23.1 | 17 |
| PT12-N02 | 12 | 21 | NPT 1/4 | 35.5 | 28.3 | 10 | 23.1 | 17 |
| PT12-N03 | 12 | 21 | NPT 3/8 | 36.5 | 28.3 | 11 | 23.1 | 17 |
| PT12-N04 | 12 | 21 | NPT 1/2 | 39.5 | 28.3 | 14 | 23.1 | 21 |
