Product Introduction

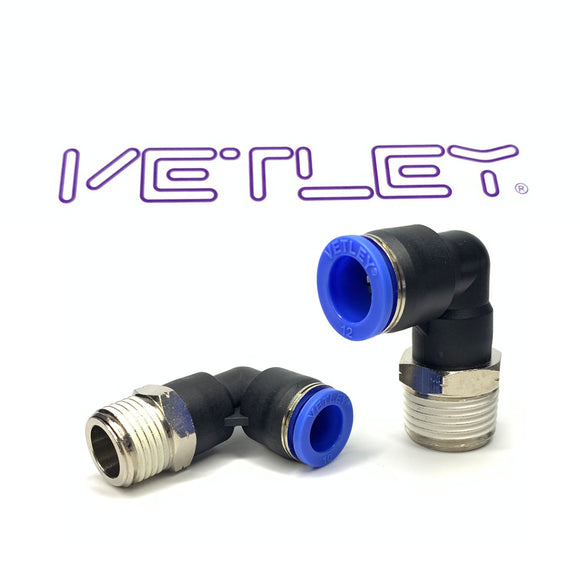

VETLEY PL male elbow push-to-connect fittings connect metric outside-diameter pneumatic tubing to female threaded ports where the tube routing requires a turn.
The fittings feature nickel-plated brass construction, a zinc collar, NBR sealing ring and POM sleeve. They are intended for compressed-air piping systems, with a listed working pressure of 0–1 MPa (10 bar) and a working temperature range of 0–60°C.
Choose the tube outside diameter and male thread separately. The range includes NPT threads and selected UNF options, depending on the model. Refer to the dimensional table to confirm the connection size and installation clearance.
Technical Parameter
Wokring Pressure:0~1Mpa(10Bar)
Working Temperature:0~60°C
Working Vacuum Pressure: -100kpa(9.94Torr)
Application Tube:PU/PE/PTFE/PVC tube
Application Medium:Compressed Air
Application Scenarios:Pneumatic Pipeline System、Automated Equipment、Mechanical Device Etc.
Available Specification Form
| Metric Outter Diameter to NPT-N Thread | ||||
| PL Male Elbow | ||||
| PL 03-UNF10-32 | PL 05-NPT1/8 | PL 06-NPT3/8 | PL 10-NPT1/4 | PL 14-NPT1/4 |
| PL 03-NPT1/8 | PL 05-NPT1/4 | PL 06-NPT1/2 | PL 10-NPT3/8 | PL 14-NPT3/8 |
| PL 03-NPT1/4 | PL 05-NPT3/8 | PL 08-NPT1/8 | PL 10-NPT1/2 | PL 14-NPT1/2 |
| PL 04-UNF10-32 | PL 06-UNF10-32 | PL 08-NPT1/4 | PL 12-NPT1/8 | PL 16-NPT1/4 |
| PL 04-NPT1/8 | PL 06-NPT1/16 | PL 08-NPT3/8 | PL 12-NPT1/4 | PL 16-NPT3/8 |
| PL 04-NPT1/4 | PL 06-NPT1/8 | PL 08-NPT1/2 | PL 12-NPT3/8 | PL 16-NPT1/2 |
| PL 05-UNF10-32 | PL 06-NPT1/4 | PL 10-NPT1/8 | PL 12-NPT1/2 | PL 16-NPT3/4 |
Details Dimensional
| Model | ∅D | ∅P | T | L | E | A | B | H(Hex) |
|---|---|---|---|---|---|---|---|---|
| PL03-U | 03 | 10.5 | UNF 10/32 | 21.4 | 18.5 | 3.6 | 14.8 | 10 |
| PL03-N1 | 03 | 10.5 | NPT 1/8 | 25 | 18.5 | 8 | 14.8 | 10 |
| PL03-N2 | 03 | 10.5 | NPT 1/4 | 28 | 18.5 | 10 | 14.8 | 14 |
| PL04-U | 04 | 11.5 | UNF 10/32 | 21.4 | 19.1 | 3.6 | 15.8 | 10 |
| PL04-N1 | 04 | 11.5 | NPT 1/8 | 25 | 19.1 | 8 | 15.8 | 10 |
| PL04-N2 | 04 | 11.5 | NPT 1/4 | 28 | 19.1 | 10 | 15.8 | 14 |
| PL04-N3 | 04 | 11.5 | NPT 3/8 | 29 | 19.1 | 11 | 15.8 | 17 |
| PL06-U | 06 | 13 | UNF 10/32 | 24.9 | 20.5 | 3.6 | 16.8 | 12 |
| PL06-N1 | 06 | 13 | NPT 1/8 | 27.8 | 20.5 | 8 | 16.8 | 12 |
| PL06-N2 | 06 | 13 | NPT 1/4 | 30.5 | 20.5 | 10 | 16.8 | 14 |
| PL06-N3 | 06 | 13 | NPT 3/8 | 31.5 | 20.5 | 11 | 16.8 | 17 |
| PL06-N4 | 06 | 13 | NPT 1/2 | 33 | 20.5 | 14 | 16.8 | 21 |
| PL08-N1 | 08 | 14.8 | NPT 1/8 | 29.5 | 23 | 8 | 18.4 | 14 |
| PL08-N2 | 08 | 14.8 | NPT 1/4 | 31.5 | 23 | 10 | 18.4 | 14 |
| PL08-N3 | 08 | 14.8 | NPT 3/8 | 32.5 | 23 | 11 | 18.4 | 17 |
| PL08-N4 | 08 | 14.8 | NPT 1/2 | 35.5 | 23 | 14 | 18.4 | 21 |
| PL10-N1 | 10 | 17.5 | NPT 1/8 | 30 | 24.6 | 8 | 20.1 | 17 |
| PL10-N2 | 10 | 17.5 | NPT 1/4 | 34 | 24.6 | 10 | 20.1 | 17 |
| PL10-N3 | 10 | 17.5 | NPT 3/8 | 36 | 24.6 | 11 | 20.1 | 17 |
| PL10-N4 | 10 | 17.5 | NPT 1/2 | 38 | 24.6 | 14 | 20.1 | 21 |
| PL12-N1 | 10 | 21 | NPT 1/8 | 35.5 | 24.6 | 8 | 23.1 | 17 |
| PL12-N2 | 12 | 21 | NPT 1/4 | 35.5 | 28.3 | 10 | 23.1 | 17 |
| PL12-N3 | 12 | 21 | NPT 3/8 | 36.5 | 28.3 | 11 | 23.1 | 17 |
| PL12-N4 | 12 | 21 | NPT 1/2 | 39.5 | 28.3 | 14 | 23.1 | 21 |
