Product Introduction
VETLEY male straight push-to-connect fittings connect metric outside-diameter pneumatic tubing to female threaded ports. The straight design supports direct tube routing in pneumatic piping systems, automated equipment and machinery.
These fittings feature a nickel-plated brass body, zinc collar, NBR sealing ring and POM sleeve. The listed working pressure is 0–1 MPa (10 bar), with a working temperature range of 0–60°C for compressed-air applications.
Select the fitting by matching both the tube outside diameter and the port thread. NPT and selected UNF options are listed in the specification table. Check the exact model and dimensions before ordering.
Technical Parameters
- Working pressure: 0–1 MPa (10 bar)
- Working temperature: 0–60°C
- Application tube: PU/PE/PTFE/PVC tube
- Application medium: Compressed air
- Application scenarios: Pneumatic piping systems, automated equipment and machinery
Original vacuum specification: -100 kPa (9.94 Torr). Confirm the vacuum rating and pressure reference before selecting for vacuum service.
Available Specification Form
| Metric Out Diameter to NPT Thread — PC Male Connector | ||||
|---|---|---|---|---|
| PC 03-U10 | PC 05-N01 | PC 06-N03 | PC 10-N02 | PC 14-N02 |
| PC 03-N01 | PC 05-N02 | PC 06-N04 | PC 10-N03 | PC 14-N03 |
| PC 03-N02 | PC 05-N03 | PC 08-N01 | PC 10-N04 | PC 14-N04 |
| PC 04-U10 | PC 06-U10 | PC 08-N02 | PC 12-N01 | PC 16-N02 |
| PC 04-N01 | PC 06-N0.5 | PC 08-N03 | PC 12-N02 | PC 16-N03 |
| PC 04-N02 | PC 06-N01 | PC 08-N04 | PC 12-N03 | PC 16-N04 |
| PC 05-U10 | PC 06-N02 | PC 10-N01 | PC 12-N04 | PC 16-N06 |
Details Dimensional
| Model | ∅D | ∅P | T | L | A | B | H1(Hex) | H2(Hex) |
|---|---|---|---|---|---|---|---|---|

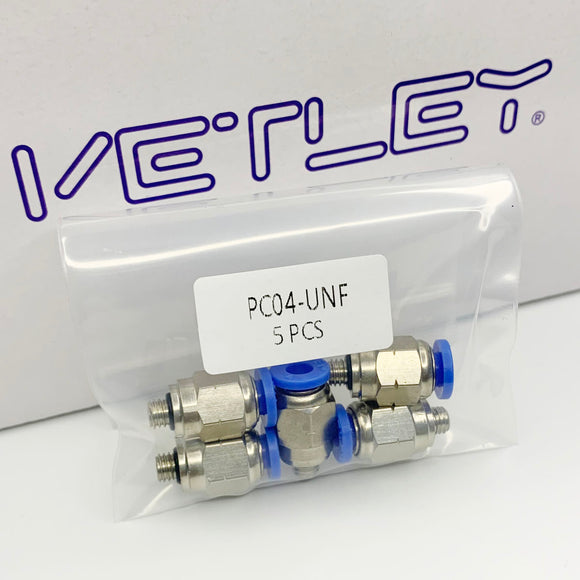

| PC04-UNF | 04 | 10.5 | UNF 10/32 | 22.5 | 3.5 | 14.8 | 10 | 2 |

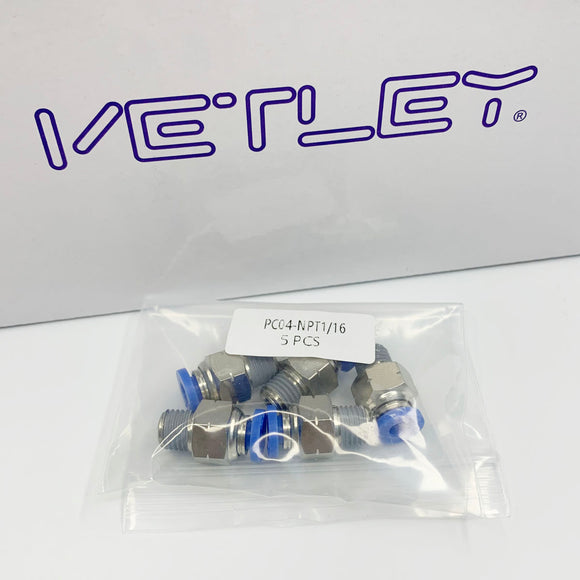

| PC04-N0.5 | 04 | 10.5 | NPT 1/16 | 19.5 | 7 | 14.8 | 10 | 2 |

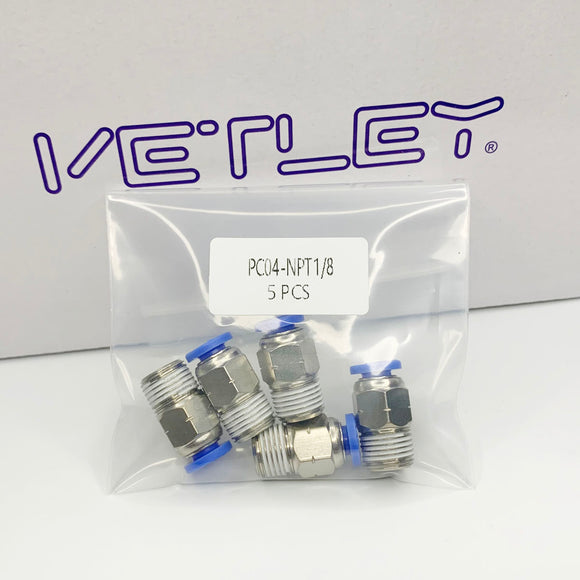

| PC04-N01 | 04 | 10.5 | NPT 1/8 | 19.5 | 7.5 | 14.8 | 10 | 2 |

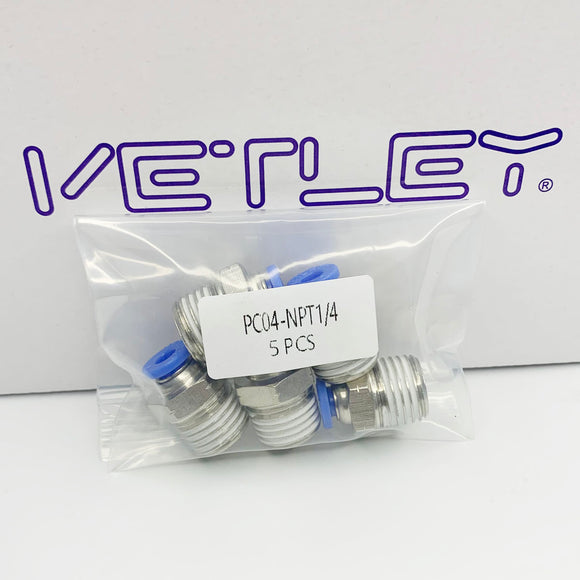

| PC04-N02 | 04 | 10.5 | NPT 1/4 | 22 | 10 | 14.8 | 14 | 3 |
| PC04-N03 | 04 | 10.5 | NPT 3/8 | 23 | 10.5 | 14.8 | 17 | 3 |

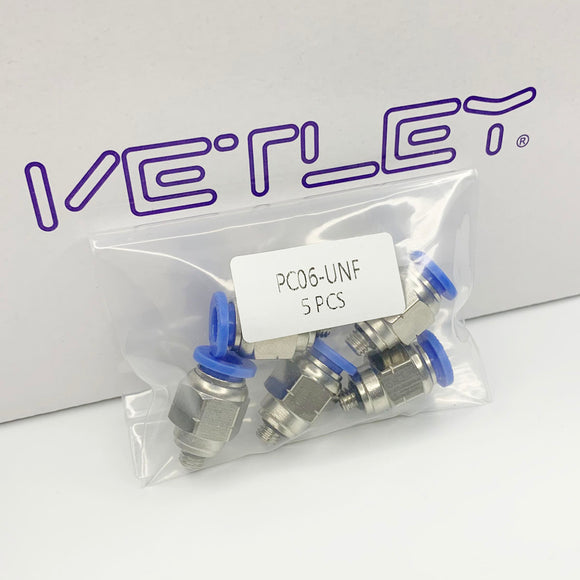

| PC06-UNF | 06 | 12.7 | UNF 10/32 | 24 | 3.5 | 16.9 | 12 | 2 |
| PC06-N0.5 | 06 | 12.7 | NPT 1/16 | 24 | 7 | 16.9 | 12 | 4 |

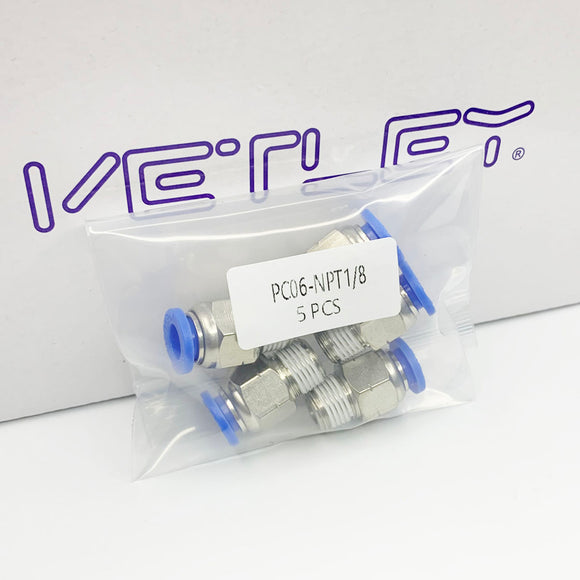

| PC06-N01 | 06 | 12.7 | NPT 1/8 | 24 | 7.5 | 16.9 | 12 | 4 |

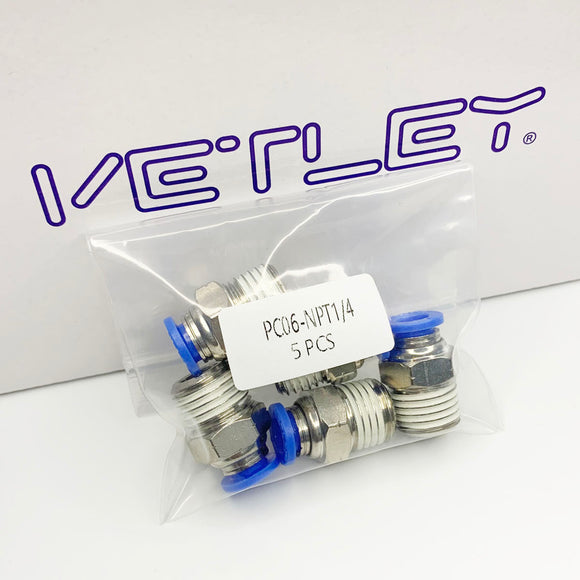

| PC06-N02 | 06 | 12.7 | NPT 1/4 | 23.4 | 10 | 16.9 | 14 | 4 |

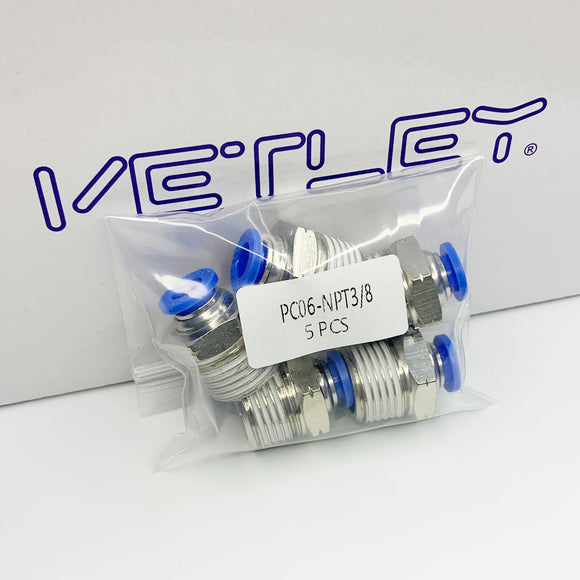

| PC06-N03 | 06 | 12.7 | NPT 3/8 | 24.4 | 10.5 | 16.9 | 17 | 5 |

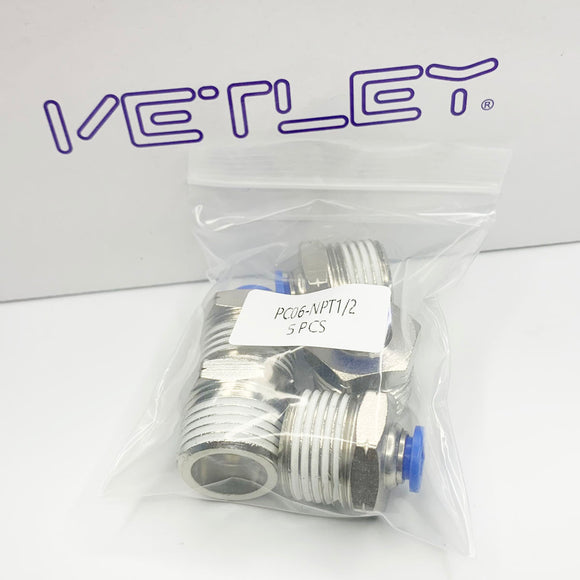

| PC06-N04 | 06 | 12.7 | NPT 1/2 | 27.4 | 13.5 | 16.9 | 21 | 5 |
| PC06-N06 | 06 | 12.7 | NPT 3/4 | 27.4 | 15 | 16.9 | 27 | 5 |

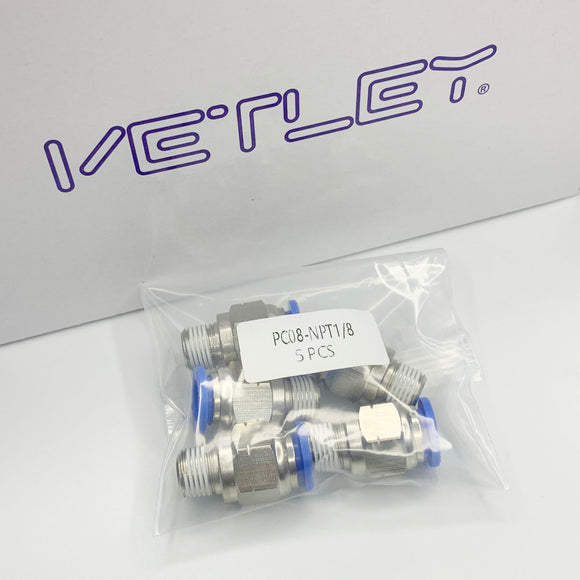

| PC08-N01 | 08 | 14 | NPT 1/8 | 28.7 | 7.5 | 18.5 | 14 | 5 |

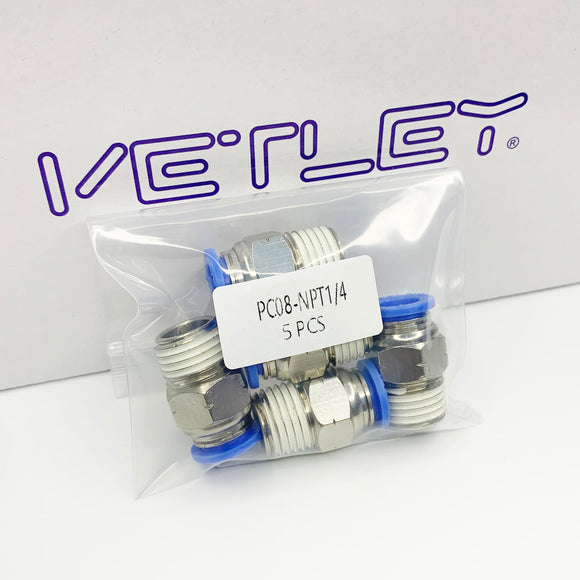

| PC08-N02 | 08 | 14 | NPT 1/4 | 26.5 | 10 | 18.5 | 14 | 6 |

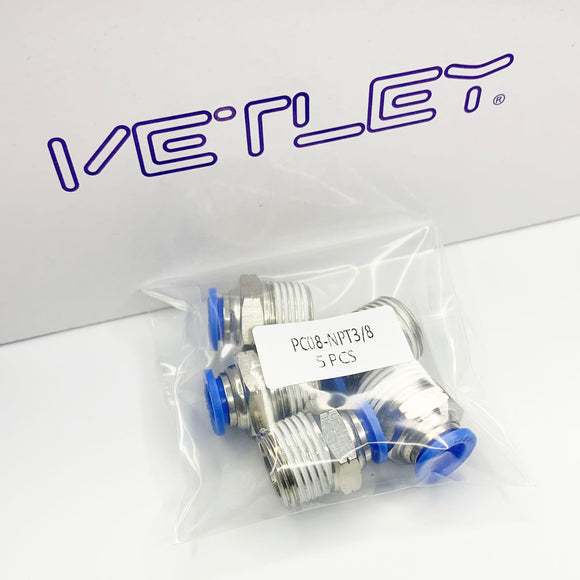

| PC08-N03 | 08 | 14 | NPT 3/8 | 24.5 | 10.5 | 18.5 | 17 | 6 |

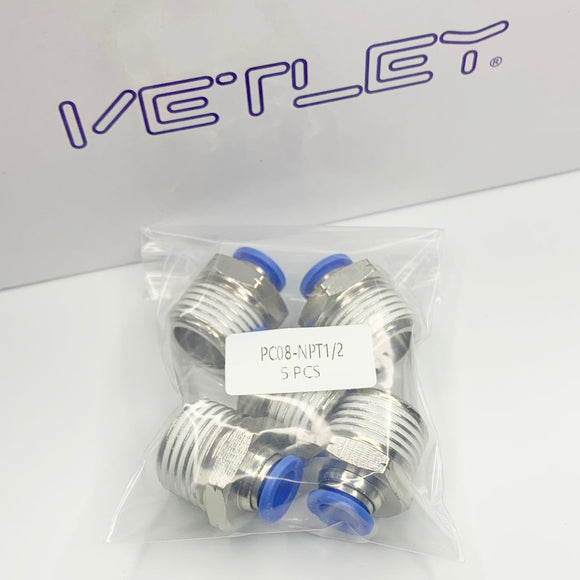

| PC08-N04 | 08 | 14 | NPT 1/2 | 27.5 | 13.5 | 18.5 | 21 | 5 |
| PC08-N06 | 08 | 14 | NPT 3/4 | 28 | 15 | 18.5 | 27 | 6 |

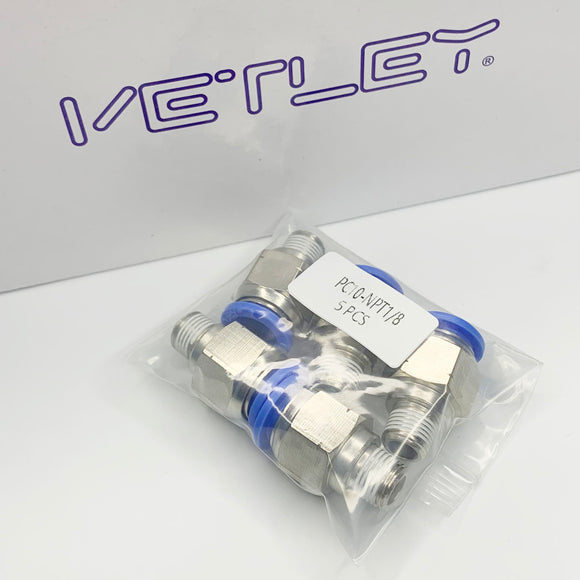

| PC10-N01 | 10 | 16.7 | NPT 1/8 | 30 | 7.5 | 19.6 | 17 | 5 |

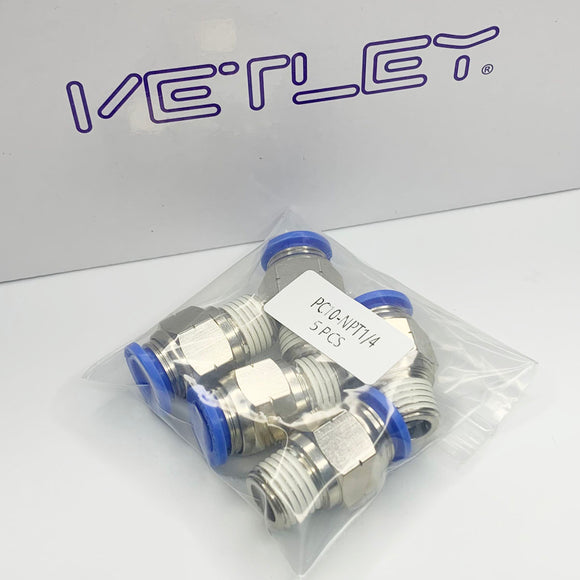

| PC10-N02 | 10 | 16.7 | NPT 1/4 | 34 | 10 | 19.6 | 17 | 6 |

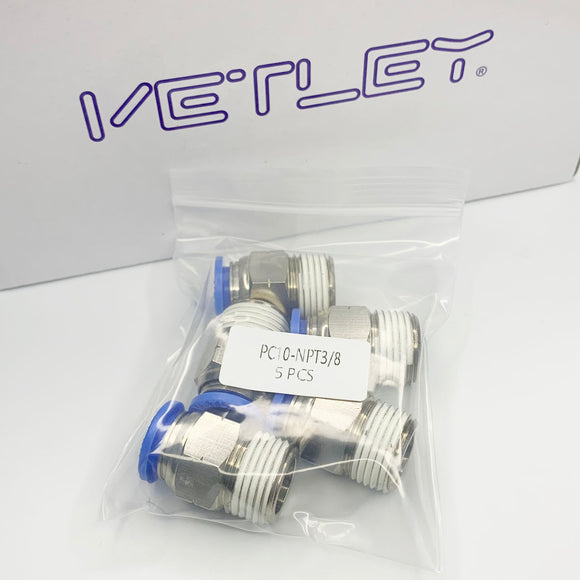

| PC10-N03 | 10 | 16.7 | NPT 3/8 | 27.7 | 10.5 | 19.6 | 17 | 8 |
| PC10-N04 | 10 | 16.7 | NPT 1/2 | 28.2 | 13.5 | 19.6 | 21 | 8 |
| PC10-N06 | 10 | 16.7 | NPT 3/4 | 28.5 | 15 | 19.6 | 27 | 8 |

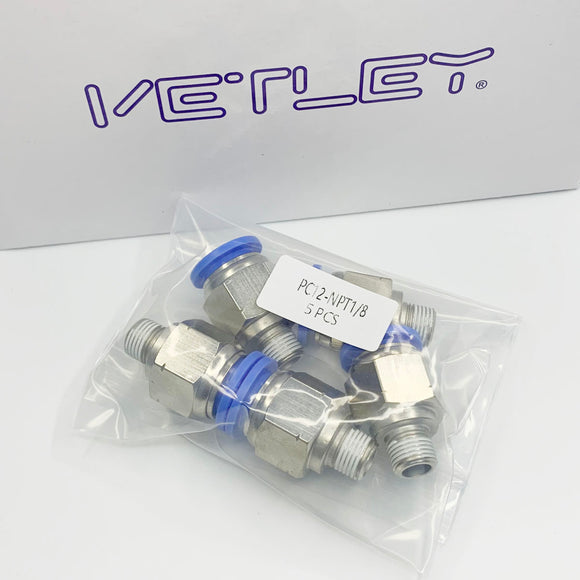

| PC12-N01 | 12 | 19 | NPT 1/8 | 33.4 | 7.5 | 21.9 | 19 | 5 |

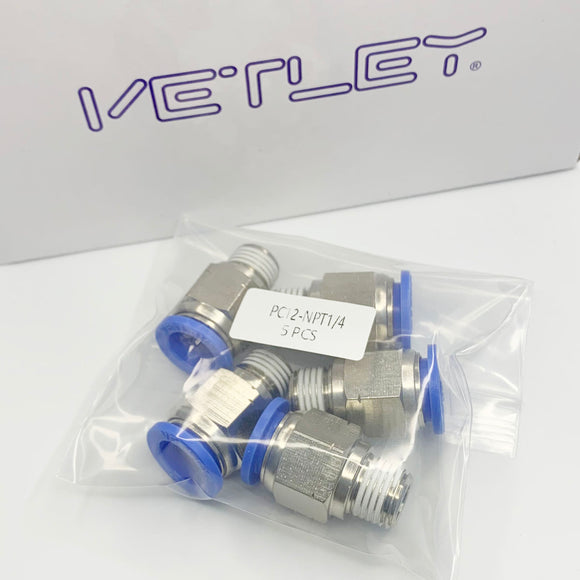

| PC12-N02 | 12 | 19 | NPT 1/4 | 35.4 | 10 | 21.9 | 19 | 6 |

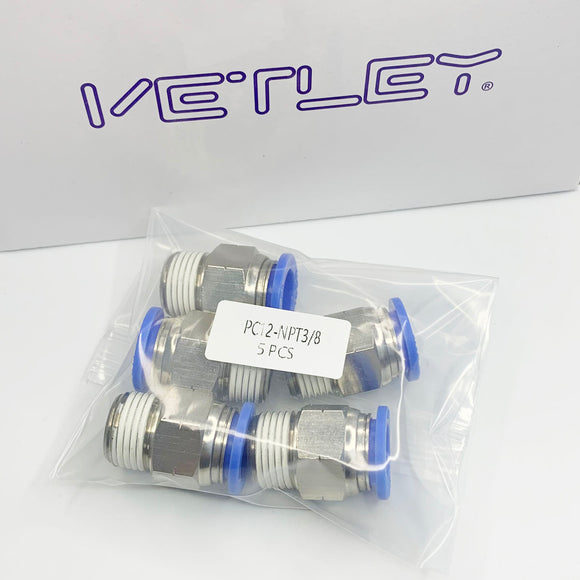

| PC12-N03 | 12 | 19 | NPT 3/8 | 31.9 | 10.5 | 21.9 | 19 | 10 |

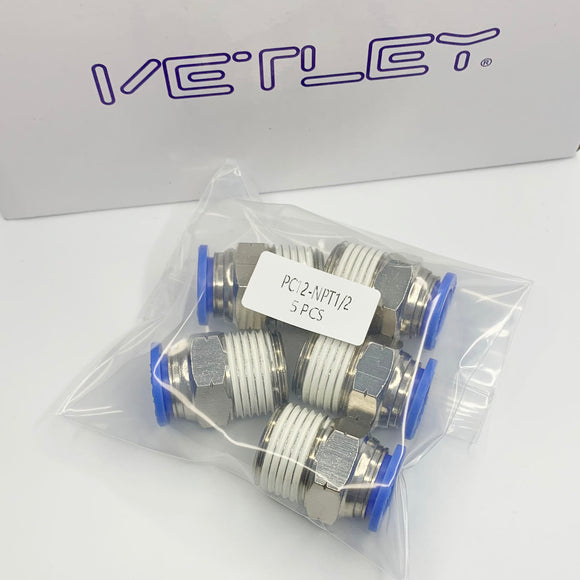

| PC12-N04 | 12 | 19 | NPT 1/2 | 31.4 | 13.5 | 21.9 | 21 | 10 |
| PC12-N06 | 12 | 19 | NPT 3/4 | 31.9 | 15 | 21.9 | 27 | 10 |
| PC14-N02 | 14 | 21.8 | NPT 1/4 | 34 | 10 | 23.8 | 22 | 6 |
| PC14-N03 | 14 | 21.8 | NPT 3/8 | 34.5 | 10.5 | 23.8 | 22 | 10 |
| PC14-N04 | 14 | 21.8 | NPT 1/2 | 32.5 | 13.5 | 23.8 | 22 | 10 |
| PC14-N06 | 14 | 21.8 | NPT 3/4 | 29.5 | 15 | 23.8 | 27 | 10 |
| PC16-N02 | 16 | 24 | NPT 1/4 | 36 | 10 | 24 | 24 | 6 |
| PC16-N03 | 16 | 24 | NPT 3/8 | 36.5 | 10.5 | 24 | 24 | 10 |
| PC16-N04 | 16 | 24 | NPT 1/2 | 36.5 | 13.5 | 24 | 24 | 12 |
| PC16-N06 | 16 | 24 | NPT 3/4 | 29.5 | 15 | 24 | 27 | 12 |
