Product Introduction

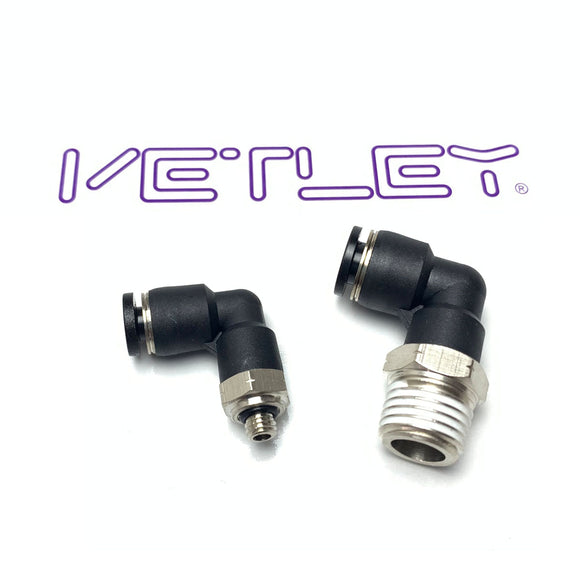

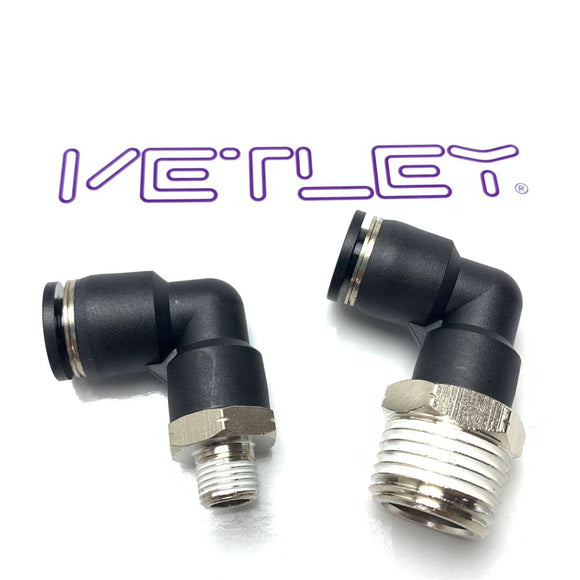

VETLEY PL inch-size male elbow fittings connect inch outside-diameter pneumatic tubing to female threaded ports. The elbow design changes the tube routing direction in compressed-air piping systems.
These push-to-connect fittings feature nickel-plated brass construction, a zinc collar, NBR sealing ring and POM sleeve. The listed working pressure is 0–1 MPa (10 bar), with a working temperature range of 0–60°C.
Select the fitting according to the tube outside diameter, not the inside diameter. Match the port thread separately using the model table, which includes NPT and selected UNF options. Inch-size and metric tube connections should not be treated as interchangeable.
Technical Parameter
Working Pressure:0~1Mpa(10Bar)
Working Temperature:0~60°C
Working Vacuum Pressure: -100kpa(9.94Torr)
Application Tube:PU/PE/PTFE/PVC tube
Application Medium:Compressed Air
Application Scenarios:Pneumatic Pipeline System、Automated Equipment、Mechanical Device Etc.
Available Specification Form
| Inch Out Diameter to NPT Thread | |||
| PL Male Elbow | |||
| PL 1/8-U10 | PL 3/16-N01 | PL 1/4-N03 | PL 3/8-N02 |
| PL 1/8-N01 | PL 3/16-N02 | PL 1/4-N04 | PL 3/8-N03 |
| PL 1/8-N02 | PL 3/16-N03 | PL 5/16-N01 | PL 3/8-N04 |
| PL 5/32-U10 | PL 1/4-U10 | PL 5/16-N02 | PL 1/2-N01 |
| PL 5/32-N01 | PL 1/4-N0.5 | PL 5/16-N03 | PL 1/2-N02 |
| PL 5/32-N02 | PL 1/4-N01 | PL 5/16-N04 | PL 1/2-N03 |
| PL 3/16-U10 | PL 1/4-N02 | PL 3/8-N01 | PL 1/2-N04 |
Details Dimensional
| Model | ∅D | ∅P | T | L | E | A | B | H(Hex) |
|---|---|---|---|---|---|---|---|---|
| PL1/8-U | 1/8 | 10.5 | UNF 10/32 | 21.4 | 18.5 | 3.6 | 14.8 | 10 |
| PL1/8-N1 | 1/8 | 10.5 | NPT 1/8 | 25 | 18.5 | 8 | 14.8 | 10 |
| PL1/8-N2 | 1/8 | 10.5 | NPT 1/4 | 28 | 18.5 | 10 | 14.8 | 14 |
| PL5/32-U | 5/32 | 11.5 | UNF 10/32 | 21.4 | 19.1 | 3.6 | 15.8 | 10 |
| PL5/32-N1 | 5/32 | 11.5 | NPT 1/8 | 25 | 19.1 | 8 | 15.8 | 10 |
| PL5/32-N2 | 5/32 | 11.5 | NPT 1/4 | 28 | 19.1 | 10 | 15.8 | 14 |
| PL5/32-N3 | 5/32 | 11.5 | NPT 3/8 | 29 | 19.1 | 11 | 15.8 | 17 |
| PL1/4-U | 1/4 | 13 | UNF 10/32 | 24.9 | 20.5 | 3.6 | 16.8 | 12 |
| PL1/4-N1 | 1/4 | 13 | NPT 1/8 | 27.8 | 20.5 | 8 | 16.8 | 12 |
| PL1/4-N2 | 1/4 | 13 | NPT 1/4 | 30.5 | 20.5 | 10 | 16.8 | 14 |
| PL1/4-N3 | 1/4 | 13 | NPT 3/8 | 31.5 | 20.5 | 11 | 16.8 | 17 |
| PL1/4-N4 | 1/4 | 13 | NPT 1/2 | 33 | 20.5 | 14 | 16.8 | 21 |
| PL5/16-N1 | 5/16 | 14.8 | NPT 1/8 | 29.5 | 23 | 8 | 18.4 | 14 |
| PL5/16-N2 | 5/16 | 14.8 | NPT 1/4 | 31.5 | 23 | 10 | 18.4 | 14 |
| PL5/16-N3 | 5/16 | 14.8 | NPT 3/8 | 32.5 | 23 | 11 | 18.4 | 17 |
| PL5/16-N4 | 5/16 | 14.8 | NPT 1/2 | 35.5 | 23 | 14 | 18.4 | 21 |
| PL3/8-N1 | 3/8 | 17.5 | NPT 1/8 | 30 | 24.6 | 8 | 20.1 | 17 |
| PL3/8-N2 | 3/8 | 17.5 | NPT 1/4 | 34 | 24.6 | 10 | 20.1 | 17 |
| PL3/8-N3 | 3/8 | 17.5 | NPT 3/8 | 36 | 24.6 | 11 | 20.1 | 17 |
| PL3/8-N4 | 3/8 | 17.5 | NPT 1/2 | 38 | 24.6 | 14 | 20.1 | 21 |
| PL1/2-N1 | 1/2 | 21 | NPT 1/8 | 35.5 | 24.6 | 8 | 23.1 | 17 |
| PL1/2-N2 | 1/2 | 21 | NPT 1/4 | 35.5 | 28.3 | 10 | 23.1 | 17 |
| PL1/2-N3 | 1/2 | 21 | NPT 3/8 | 36.5 | 28.3 | 11 | 23.1 | 17 |
| PL1/2-N4 | 1/2 | 21 | NPT 1/2 | 39.5 | 28.3 | 14 | 23.1 | 21 |
